Tata Hitachi Zaxis 40U

Rating Icon4.5
2 Reviews
Write a Review

Tata Hitachi ZAXIS 40U is a 29.4 Hp mini excavator that comes with a zero tail swing design. It comes with 3 bucket capacities ranging from 0.04 cum to 0.12 cum. With digging depths of up to 3.46 metres and a maximum reach of 5.52 metres, ZAXIS 40U can handle trenching, excavation and other site work across different applications.

Tata Hitachi Zaxis 40U
Price Coming Soon
Engine Power29.4 HpOperating Weight3900 KgBucket capacity0.12 Cum

Check all Tata Hitachi Equipments

arrow_icon
AD

Tata Hitachi Zaxis 40U Specification

Engine PowerEngine Power

29.4 Hp

Operating WeightOperating Weight

3900 Kg

Bucket capacityBucket capacity

0.12 Cum

Maximum Digging DepthMaximum Digging Depth

3060 MM

About Tata Hitachi Zaxis 40U Excavator Overview

Tata Hitachi Machine has recently introduced the compact excavator ZAXIS 40U which is ideal for excavation and material handling applications in confined areas. Its zero tail swing design allows operators to operate near obstacles, without requiring a wide working area.

It has a Yanmar 3TNV88 engine with a capacity of 22.0 kW (29.9 PS) at 2400 rpm. ZAXIS 40U offers two arm options of 1.32 metres and 1.72 metres. Depending on the arm selected, maximum digging depth reaches 3460 mm while maximum digging reach extends to 5520 mm. Therefore, operators can select the configuration according to the excavation requirement.

The compact machine also comes with a 300 mm track shoe width and an overall width of 1740 mm. As a result, it can move and operate across relatively tight work areas. Its boom can swing 72 Degree to the left and 62 Degree to the right, adding further flexibility during excavation.

Tata Hitachi ZAXIS 40U Price in India

Looking for the latest Tata Hitachi ZAXIS 40U price in India? The price depends on the machine configuration, attachments and other factors. Buyers can check the latest quotation and available configurations through authorised Tata Hitachi dealers.

On Infra Junction, you can check detailed specifications, view images, compare features and connect with verified Tata Hitachi mini excavator dealers for the latest price quotes. You can also compare different Construction machine and their specs to find the right excavator for your work.

Tata Hitachi ZAXIS 40U Key Specifications

Engine and Performance

  • Engine: Tata Hitachi ZAXIS 40U uses a Yanmar 3TNV88, 4 cycle, water cooled, direct injection diesel engine.
  • Power: The engine delivers 22.0 kW (29.9 PS) at 2400 rpm which are enough for excavating operation.
  • Torque: The maximum torque is 105.5 Nm at 1,000 rpm, providing smooth operating performance of the engine.

Hydraulic System and Digging

  • Hydraulic Pumps: The hydraulic system uses two variable displacement axial piston pumps and one gear pump.
  • Oil Flow: The main pumps provide a maximum flow of 2 X 38.4 L/min while the gear pump provides 22.8 L/min.
  • Bucket Digging Force: Bucket digging force reaches 2770 kgf to help the machine handle excavation tasks.
  • Swing Speed: The upper structure has a swing speed of 9.1 rpm.

Working Range and Bucket Options

  • Maximum Digging Reach: The 1.32 m arm provides a reach of 5210 mm while 1.72 m arm extends it to 5520 mm.
  • Digging Depth: Maximum digging depth is 3060 mm with the 1.32 m arm and 3460 mm with 1.72 m arm.
  • Dumping Height: Maximum dumping height reaches 3460 mm with shorter arm and 3570 mm with the longer arm.
  • Bucket Capacity: Available bucket capacities include 0.12 cum, 0.11 cum and 0.04 cum, depending on the bucket configuration.
  • Minimum Swing Radius: The minimum swing radius is 2070 mm with 1.32 m arm and 2190 mm with 1.72 m arm.

Compact Design and Manoeuvrability

  • Zero Tail Swing: Zero tail swing design allows the rear of the machine to stay within a compact working envelope.
  • Overall Width: With a 300 mm track shoe, the overall machine width is 1740 mm.
  • Rear Swing Radius: The rear end swing radius is 870 mm to help during work in restricted areas.
  • Ground Clearance: Minimum ground clearance is 270 mm, supporting movement across uneven surfaces.

Operator Comfort and Safety

  • Canopy: ZAXIS 40U comes with a FOPS and TOPS compliant canopy for the operator station.
  • Operator Seat: An ergonomic seat supports the operator during longer working hours.
  • Monitor: A multi function monitor keeps key machine information within the operator's view.
  • Visibility: LED lighting and a roof lamp improve visibility during low light operations.
  • Safety: An emergency cutoff switch provides an additional safety control during operation.
  • Canopy Fan: Provision for a canopy fan adds comfort in warm working conditions.

Why Buy Tata Hitachi ZAXIS 40U from Infra Junction?

Infra Junction helps buyers compare Tata Hitachi ZAXIS 40U specifications, features and available equipment in one place. You can check its engine power, bucket capacities, digging range, hydraulic system and operating weight.

You can also compare Tata Hitachi ZAXIS 40U with other top mini excavator models based on digging depth, loader capacity, engine output and attachment options. The platform lets buyers explore new and used construction equipment and connect with Tata Hitach dealers for current quotations.

‌

Tata Hitachi Zaxis 40U Features

Engine
ModelYanmar 3TNV88
Displacement1.642 Ltr
Engine Power29.4 Hp

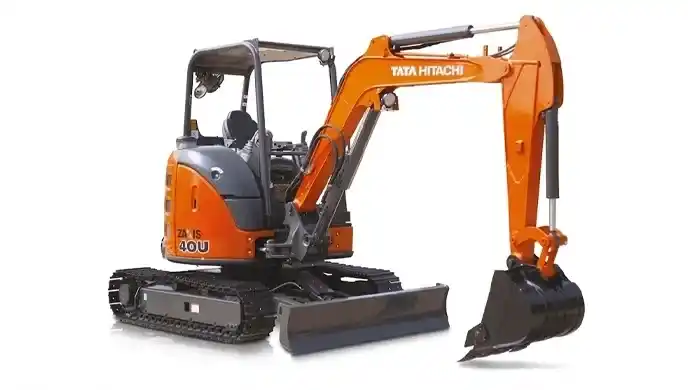

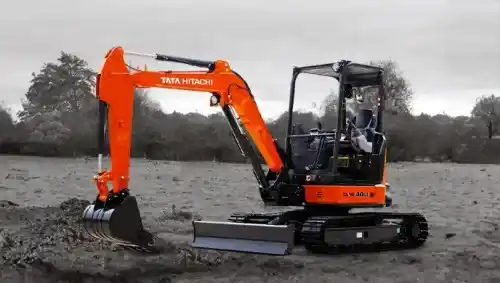

Tata Hitachi Zaxis 40U Photos

We have 2 images of Tata Hitachi Zaxis 40U, Explore Photo gallery of Tata Hitachi Zaxis 40U which includes Engine Power,Operating Weight,Lifting Capacity and others.
‌
Tata Hitachi Zaxis 40U
Tata Hitachi Zaxis 40U
