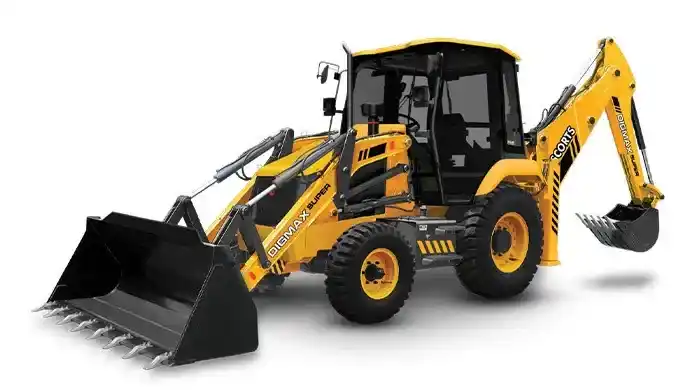

Specification of ESCORTS DIGMAX SUPER

ESCORTS DIGMAX SUPER Specifications

DIGMAX SUPER is one of the most popular Backhoe Loader in India. DIGMAX SUPER is known for its unmatched reliability and low maintenance, making it an ideal choice for various applications.

ESCORTS DIGMAX SUPER Engine

The powerful DIGMAX SUPER engine delivers 75 HP and 340 NM, taking your work output to a whole new level.

ESCORTS DIGMAX SUPER Bucket Capacity

DIGMAX SUPER backhoe loader has 0 Cum helping in heavy construction materials haulage in one go.

Operating Weight of ESCORTS DIGMAX SUPER

The DIGMAX SUPER comes with an operating weight of 8190 Kg ensuring massive output while ensuring equipment stability on every worksite.

ESCORTS DIGMAX SUPER Lifting Capacity

ESCORTS DIGMAX SUPER Bucket Capacity is optimal and can lift and carry loads effectively.

ESCORTS DIGMAX SUPER Hydraulic Oil

DIGMAX SUPER comes with a hydraulic oil of 80 Ltr contributing to overall system efficiency, smooth functionality & minimizing the risk of breakdowns.

ESCORTS DIGMAX SUPER Engine Oil

DIGMAX SUPER Engine Oil of 11.5 Ltr. reduces friction and improves overall efficiency.

Fuel Tank Capacity of ESCORTS DIGMAX SUPER

The exceptional fuel tank capacity of 134 Ltr. of DIGMAX SUPER helps to cut down on downtime and minimize the frequency of refueling.

ESCORTS DIGMAX SUPER Load Over Height

DIGMAX SUPER Backhoe Loader has an excellent 4390 MM that makes it easy to reach and handle loads in a variety of situations.

ESCORTS DIGMAX SUPER Max Reach At Full Height

The impressive DIGMAX SUPER can reach at full height of 1220 MM ensuring efficient loads haulage at greater height, enhancing your worksite productivity.

ESCORTS DIGMAX SUPER Tyres

DIGMAX SUPER boasts of 9.00 x 16 – 16 PR front tyres and 16 x 9 – 28 – 12 PR IDT rear tyres ensures durability and safety in the most demanding working environment.

ESCORTS DIGMAX SUPER Prices in India

ESCORTS DIGMAX SUPER price range is cost effective, allows for customers to make informed decision.

Wheelbase of ESCORTS DIGMAX SUPER

The DIGMAX SUPER comes with a class-leading wheelbase of 2140 MM.

‌

Are you interested ?

ESCORTS DIGMAX SUPER Backhoe Loader

Price Coming Soon

75 HP

0.26 Cum

4800 mm

Key Specs of ESCORTS DIGMAX SUPER Backhoe Loader

Hydraulic oil

80 Ltr

Max. lift capacity

1980 Kg

Loader Bucket capacity

1.2 Cum

Max. reach at full height

1220 mm

Max Operating Weight

8190 Kg

Backhoe Bucket capacity

0.26 Cum

ESCORTS DIGMAX SUPER Specs & Features

Engine
Compliant	CEV - IV
Model	E4.346CRS4
Air Intake Type	Turbocharged Water Cooled
Gross Power	75 HP
Maximum Torque	340 NM

Loader General Dimension
Dump Height	3000 mm
Load Over Height	3510 mm
Hinge Pin Height	3700 mm
Hinge Pin Forward Reach	430 mm
Reach At Ground	1570 mm
Rollback At Ground	45 Degree
Dump Angle	45 °
Bucket Capacity Std	1.2 Cum

Backhoe Loader Dimension
Maxd Dig Depth	4800 mm
Reach Ground level to rear wheel center	6970 mm
Reach at full height to slew center	2320 mm
Max Working Height	6300 mm
Max Load Over Height	4390 mm
Bucket Rotation	187 Degree
dipper Tear Out Force	3250 Kgf
Max. lift capacity	1980 Kg

Overall Dimension & Weight
Max Operating Weight	8190 Kg
Transport Length	6280 mm
Track Width Rear	1750 MM
Track Width Front	1870 MM
Wheelbase	2140 mm
Minimum Ground Clearance	350 mm
Height to top of cabin	2880 mm

Hydraulic System
System Type	Open Centre
Pump type	Tandem Gear Pump
Pump Flow	116 Ipm

Service Capacities
Engine Oil	11.5 Ltr
Rear Axle	17.1 Ltr.
transmission Oil Capacitysystem	16.5 Ltr
Fuel Tank	134 Ltr
Coolant	15 Ltr.
Hydraulic oil - System	80 Ltr

Power Train
Transmission make and model	Syncro shift reversing shuttle transmission

Axle
Rear	Rear Drive Axle
Front	Front Steer Axle (2WD),: Front Drive and Steer Axle (4WD)
front axle Oscillation	±16 (2WD), ±12 (4WD)

Steering
Type	Hydrostatic power steering
System Pressure	120 Bar

Brakes
Brakes service	Hydraulically actuated dual line, self adjusting, oil immersed, multi disc type on rear axle
Brakes Parking	Hand-operated caliper disc brakes
