20000 Kg
5.37 Meter

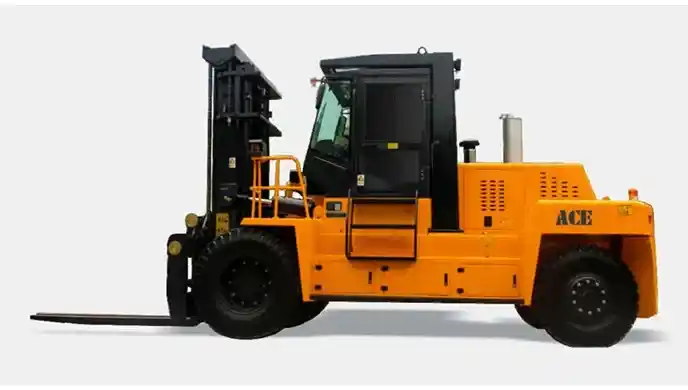

ACE AF 200D Specifications
ACE AF 200D is an industrial vehicle designed for the purpose of lifting, moving, and stacking materials. ACE AF 200D plays a vital role in material handling operations across various industries.
ACE AF 200D Engine Rating
ACE AF 200D has an engine rating of 215 HP that ensures optimal work output & increased productivity.
Fuel Type of ACE AF 200D
The ACE AF 200D fuel type is Diesel offering increased work efficiency and lower operating costs in the long run.
Lifting Load Capacity of ACE AF 200D
ACE AF 200D lifting load capacity is 20000 Kg enabling businesses to achieve greater efficiency, flexibility, and profitability in their operations.
ACE AF 200D Lift Height
ACE AF 200D comes with an ideal lift height that contributes to improved productivity.
ACE AF 200D Ground Clearance
ACE AF 200D ground clearance is 1050 Kg which allows you to effortlessly navigate diverse terrains, including rough or uneven surfaces.
ACE AF 200D Price in India
ACE AF 200D price range in India is cost-effective for Indian customers.
20000 Kg5.37 Meter
2440 mmLifting load capacity20000 Kg
Lift height5.37 Meter
Length to face of forks2440 mm
Turning radius5800 mm
Ground Clearance250 mm
General | |||
|---|---|---|---|
| Lifting Load Capacity | 20000 Kg | ||
| Load Center Distance | 1220 mm | ||
| Fuel Type | Diesel | ||
Engine | |||
|---|---|---|---|
| Rated RPM | 2200 Rpm | ||
| Rated Torque KGM RPM | 908/1500 Nm/rpm | ||
| No. of cylinders | 6 | ||
Gear box | |||
|---|---|---|---|
| No. of speeds fwd rev | 2F/1R | ||
Tyres | |||
|---|---|---|---|
| Size Front | 4x14.00-24/24 PR | ||
| Size Rear | 2x14.00-20/24 PR | ||
| Wheel Base | 4000 mm | ||
Dimensions | |||
|---|---|---|---|
| Lift Height | 5.37 Meter | ||
| Std. free Lift | 230 mm | ||
| Fork L*W*T (mm^3) | 2440 mm | ||
| Turning Radius | 5800 mm | ||
| Aisle width | 5000 mm | ||
| Dimensions front overhang | 975 mm | ||
| Height | 5370 mm | ||
| Overhead Guard Height | 3580 mm | ||
Performance | |||
|---|---|---|---|
| Lifting (m/s) | 240 MM/S | ||
| Lowering (m/s) | 500 MM/S | ||
| Steering Type | Power Steering | ||
| Gradability | 20 % | ||
Brakes | |||
|---|---|---|---|
| Parking Brakes Type | Inside expanding manual brake | ||
| Service Brakes Type | Caliper Disc | ||
