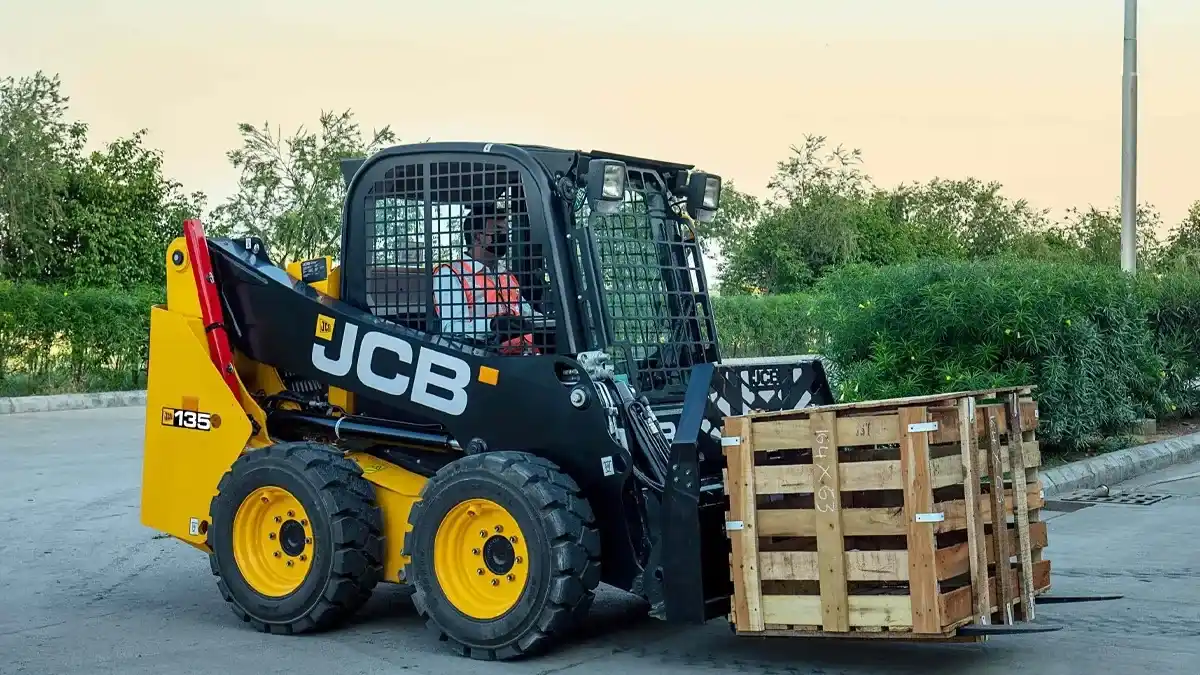

JCB 135 is a popular skid steer loader in India. The Max power of this model is 35.7 kW. With an operating weight of 2770 kg, the model ensures optimal output. The bucket capacity of this model is 0.36 Cu.m. This JCB 135 in India is available at a price range of ₹ 17 - 23 Lakh.
₹ 17 - 23 Lakh
0.36 Cu.m
N/A
35.7 kW
2770 kg
1224 Kg
210 MM
JCB is a very popular name in the heavy construction equipment segment. JCB 135 is designed with segment best specification, which helps in providing better work efficiency. The Skid Steer Loader model from JCB is one the best Construction machines in heavy loading work. This Skid Steer Loader also comes with an operating weight of 2770 kg, which increases your output. Here you quickly get the JCB 135 price in India with all its features.
JCB 135 Skid Steer Loader Engine
JCB 135 comes with an engine which generates a torque of 143 NM. In addition, this engine gives a new dimension to work output to this JCB 135.
JCB 135 Skid Steer Loader Weights
The JCB 135 comes with an operating weight of 2770 kg. This operating weight of JCB and 135 increases the effectiveness in the heavy construction works.
JCB 135 Skid Steer Loader Price in India
JCB 135 Skid Steer Loader price starts from ₹ 17 Lakh and goes up to ₹ 23 Lakh in India. This price of JCB 135 Skid Steer Loader contains all the specifications of the heavy duty equipment. You can comfortably buy JCB 135 with the help of Infra Junction. In addition, we will provide you with every minor information about the JCB 135. At Infra Junction, you can easily get the on-road price of JCB 135 Skid Steer Loader with all government taxation amounts.
Why Infra Junction is Best For JCB 135 Skid Steer Loader
We provide you with a platform where you can compare this 135 with other products of the Skid Steer Loader category. JCB Skid Steer Loader provides high quality work with its implemented components. Along with all the details of 135, you can also get an updated price of JCB 135.
Max Power
35.7 kW
Engine Type/Model
Perkins 404D-22
Engine Fuel
Diesel
Engine Peak Torque(Nm)
143 NM
Engine Emission
BS III (CEV)
Tipping load full turn
1224 Kg
Ground clearance
210 MM
Turning Radius
2090 MM
Max. Overall height
1980 MM
Max. Overall length
3490 MM
Height to Bucket Hinge Pin
3000 MM
Wheelbase
1070 MM
Fuel Tank (Ltr)
98
Engine Oil
10 Ltr
Hydraulic Tank
69 Ltr
Engine Coolant
15 Ltr
Operating weight
2770 kg
Bucket Capacity
0.36 Cu.m
Rated Operating Capacity
612 kg
tipping_load
1224 kg
Travel Speed
12 Km/h
Dump height
42°
Dump angle
2260 MM
Battery
90 AH, 1000 cold cranking amp (CCA) Standard Battery Isolator
Alternator
65 amp
Standard Tyre-Front
10 X 16.5 - 10 PR Heavy Duty Tyre
HD Tyre-Rear-Optional
31 X 10 Solid Tyre
Adjustable Seat
Yes
