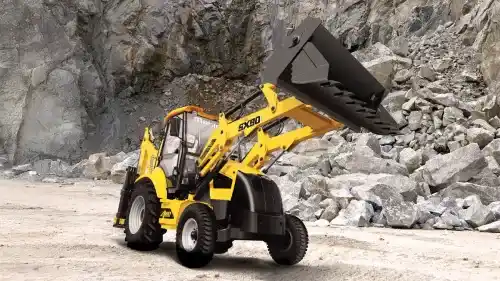

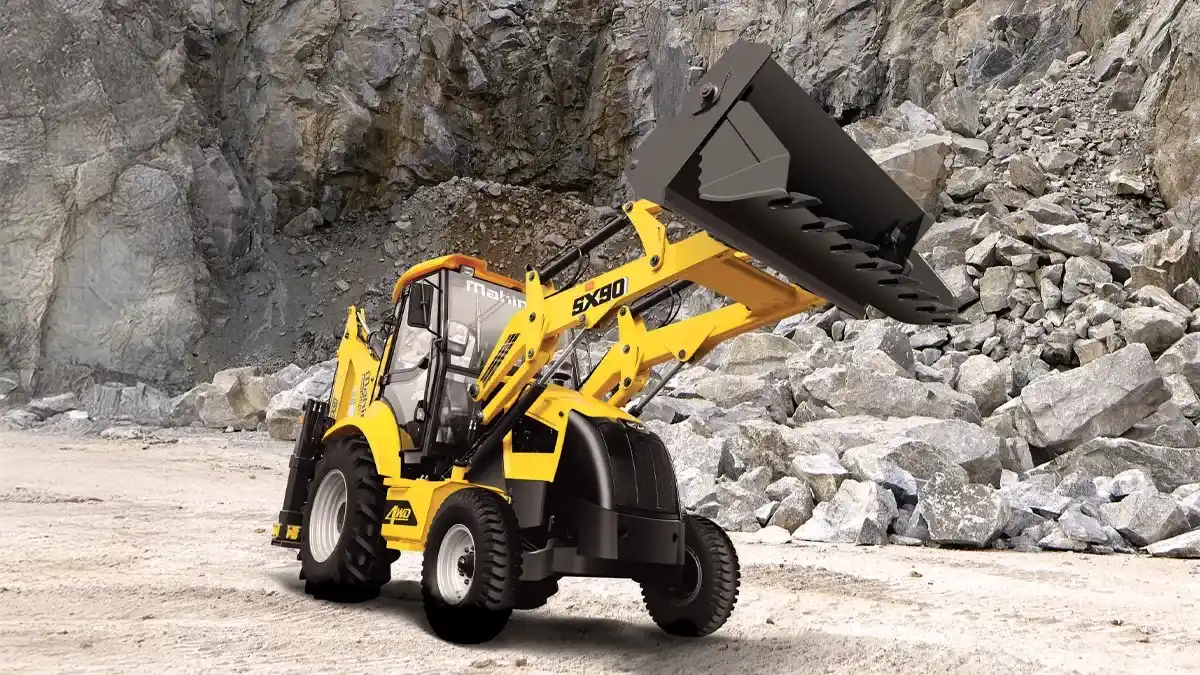

Mahindra Earthmaster SX90 4WD

Mahindra is a trusted name in India’s construction equipment sector, known for offering durable and high-performance machines. One such popular model is the Mahindra Earthmaster SX90 4WD Backhoe Loader. Built to handle tough working conditions, this machine combines strength, efficiency, and reliability, making it a preferred choice for professionals.

The Earthmaster SX90 4WD is designed to deliver dependable performance across varied terrains. Whether it’s digging, loading, or material handling, this Mahindra backhoe loader ensures enhanced control and productivity on job sites.

Because of its adaptable nature, the Mahindra Earthmaster SX90 4WD is widely used across construction, agriculture, and infrastructure development. From road works and building foundations to farm applications and irrigation projects, it proves to be a valuable asset across multiple sectors.

Mahindra Earthmaster SX90 4WD Backhoe Loader Price in India 2025

The Mahindra Earthmaster SX90 4WD price in India starts from Rs. 31 lakh to Rs. 33 Lakh, Ex-Showroom. The on-road price may vary depending on location, dealer pricing, and any attachments you choose. For the most accurate and latest pricing, visit trusted dealer platforms like Infra Junction.

This machine is a good investment because it provides low maintenance, good resale value, and excellent working capacity. For contractors and builders looking for a smart backhoe loader that does the job with ease, this model is a smart choice.

Mahindra Earthmaster SX90 4WD Specifications

The Mahindra Earthmaster SX90 4WD is packed with high-performance features to make construction work easy and fast. Below are the key specifications divided into different categories:

1. Performance

This machine is built for heavy jobs like trench digging, lifting, and material loading. Its strong engine and hydraulic system give smooth performance even on tough work sites.

• Engine Model: 4915-IA-CE V
  A powerful Mahindra engine specially made for construction equipment, ensuring high performance with long durability.
• Displacement: 3532 cc
  A 3.5-litre engine size that allows better combustion and torque generation for demanding tasks.
• Gross Power: 91 Hp
  Delivers 91 horsepower to handle heavy-duty lifting, digging, and transporting activities with ease.
• Maximum Torque: 345 NM
  Generates 345 Newton-meters of torque, enabling smooth operations under load and better pulling strength on uneven ground.
• Max. Operating Weight: 7742 Kg
  The full weight of the machine including fuel and fluids, which provides better grip and balance during operations.
• Fuel Tank Capacity: 120 Ltr
  A large fuel tank that supports long hours of work without frequent refueling, enhancing productivity on remote sites.

2. Loader and Backhoe Capacity

This machine has a powerful loader in the front and a strong backhoe at the back, making it useful for all types of work.

• Loader Bucket Capacity: 1.1 Cum
  Can carry up to 1.1 cubic meters of material in one load — ideal for handling sand, gravel, or soil quickly.
• Max Lifting Capacity (Loader): 1800 Kg
  Lifts up to 1800 kg with the front loader, useful for carrying cement bags, stone, bricks, or other heavy items.
• Bucket Breakout Force: 6243 Kg
  Indicates the force applied by the loader bucket to break through hard soil or compacted material efficiently.
• Loader Arm Breakout Force: 5594 Kg
  Shows the loader arm’s strength in pushing or lifting heavy material under pressure without bending.
• Backhoe Bucket Capacity: 0.3 Cum
  The backhoe bucket can carry 0.3 cubic meters, suitable for medium to large trenching or foundation jobs.
• Max Lift Capacity (Backhoe): 3428 Kg
  The backhoe arm can lift up to 3428 kg, allowing it to manage pipes, debris, or dug-up material easily.
• Dipper Tear Out Force: 3182 Kg
  Indicates how forcefully the dipper arm can pull through hard soil while digging, useful for deep excavation.

3. Dimensions and Reach

The compact structure and wide reach of this machine make it suitable for all types of sites, big or small.

• Dump Height: 2723 mm

      Refers to how high the loader can dump material into a truck or bin, allowing easy unloading.

• Max Load Over Height: 4302 mm
  The highest point the loader can lift a load before tipping — good for loading into high-sided trucks.
• Hinge Pin Height: 3477 mm
  The vertical height from the ground to the hinge pin at maximum loader arm extension — important for determining reach.
• Max Dig Depth (Backhoe): 4959 mm
  The backhoe can dig nearly 5 meters deep, which is useful for foundation, septic, and utility line work.
• Max Working Height: 6043 mm
  The total vertical reach when the arm is fully extended — helps in handling tall loads or elevated digging tasks.
• Max Reach at Full Height (Bucket Dumped): 4885 mm
  Horizontal reach when dumping from a full-height bucket — allows better unloading precision.
• Wheelbase: 2175 mm
  The distance between the front and rear wheels — helps provide stability and balance during lifting or traveling.
• Transport Length: 5856 mm
  The total machine length for transporting or storage purposes — important for logistics.
• Height to Top of Cabin: 2950 mm
  Cabin height helps determine where the machine can pass through (like under bridges or storage sheds).

4. Hydraulic and Service Capacities

When we talk about Mahindra Earthmaster SX90 4WD specs, the first thing that comes up is its hydraulic system supports quick and strong movements. It also has good oil and fluid capacity to avoid frequent servicing.

• Hydraulic Pump Flow: 117 Ltr/min

Indicates how much hydraulic fluid flows per minute — higher flow supports faster and smoother arm movements.

• Hydraulic Oil Capacity: 100 Ltr

Large hydraulic oil reserve ensures long, uninterrupted machine operation during high-intensity work.

• Engine Oil: 13.7 Ltr

Maintains engine lubrication for smooth, heat-resistant performance over long work shifts.

• Coolant: 17 Ltr

Keeps the engine temperature in check during prolonged usage in hot conditions.

• Rear Axle Oil: 17.1 Ltr

Lubricates the rear axle assembly, reducing wear and improving durability.

• Transmission Oil: 22 Ltr

Ensures smooth gear shifting and power transfer between engine and wheels.

5. Powertrain and Transmission

The Mahindra SX90 4WD has a smooth transmission setup that gives proper control and movement on all surfaces.

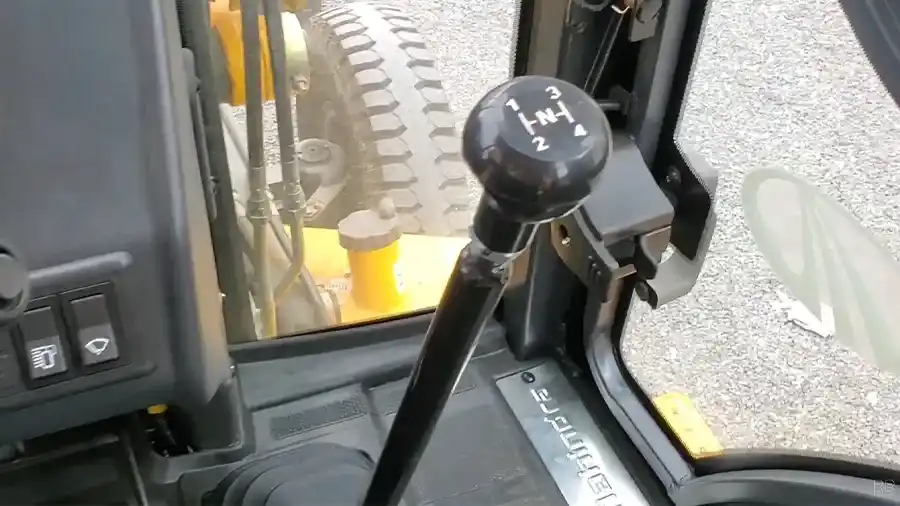

• Transmission: 4 Forward + 4 Reverse

Offers 4-speed forward and 4-speed reverse gear settings for versatile control in different site conditions.

• Rear Axle: Rigidly mounted with planetary drives

Increases strength and load-handling capacity while maintaining power transmission to the wheels.

• Front Axle: Pivoted with 16° oscillation and remote greasing

Allows better movement on uneven terrain with easier greasing for low maintenance.

6. Steering and Braking

Easy steering and safe braking ensure that the operator can handle the machine comfortably.

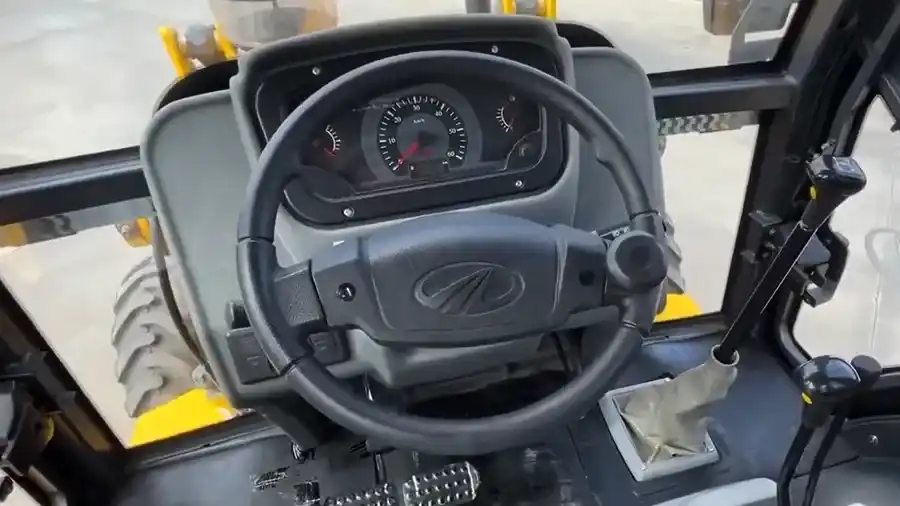

• Steering Type: Hydrostatic Power Steering with 145 bar pressure

Provides smooth and effortless steering, even during heavy-duty operation.

• Service Brakes: Oil-immersed, multi-disc, hydraulically actuated

These heavy-duty brakes give reliable stopping power with reduced wear and better control.

• Parking Brake: Hand-operated, low maintenance
  Ensures secure parking on slopes or uneven ground, and it requires minimal servicing.

7. Tyres

The machine comes with strong tyres that can move easily on rough roads and job sites.

• Front Tyre: 12.5 / 80 X 18 - 12PR (IT/HD)
  Heavy-duty industrial tyre suitable for off-road and hard terrain operations.
• Rear Tyre: 16.9 X 28 - 12PR (IT), 14 X 25 - 12PR/20PR (HD)
  Large rear tyres offer better ground grip, load support, and durability over time.

Mahindra Earthmaster SX90 4WD Backhoe Loader Applications

The Mahindra SX90 4WD is suitable for various industries. It can be used for many types of jobs:

1. Construction Projects

Ideal for site development, material shifting, and foundation digging in large and small projects.

2. Road Work and Maintenance

Used for digging trenches, lifting materials, and loading in road building projects.

3. Mining and Quarry Work

Supports operations in rough terrains and tough digging jobs in mines.

4. Agriculture and Rural Projects

Useful for pond digging, land leveling, and fencing work in farmlands.

5. Municipal and Utility Jobs

Helps in water line repair, waste cleaning, drainage jobs, and basic urban infrastructure work.
